Break Squeal Noise Analysis
Summary
The noise is generated by self-induced vibration of a brake system caused by the friction. A number of contact and sliding structure of automobile brake system make it difficult to create computer model for dynamic analysis, however, complex eigenvalue stability analysis by the brake system FE model which combines with equation of friction provides design guide.
In addition, ESTECH developed original software to understand easily the output of complex eigenvalue analysis, which is a commercial software product named ESTECH.Squeal

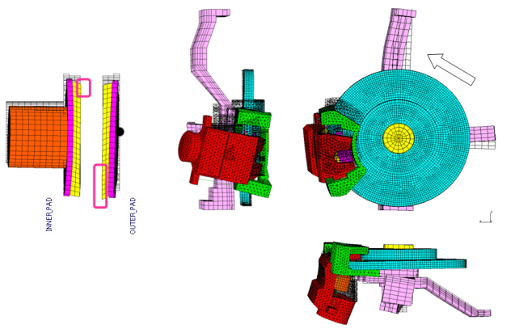

Brake Deformation Simulation during braking

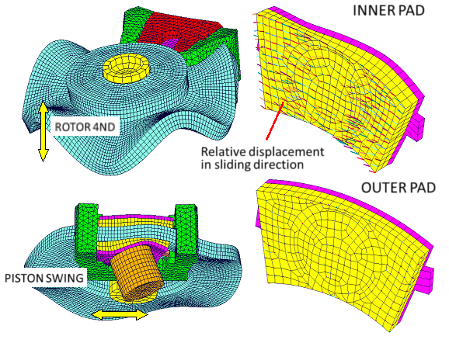

Vibration Mode generates Brake Squeal
Relevant Software
Reference Materials
-
Accuracy Improvement of Drum Brake Squeal Simulation
JASE 2012-October -
A Study of Friction Model for Friction-induced Vibration Simulation-1st report
JASE 2005-May -
A Study of Friction Model for Friction-induced Vibration Simulation-2nd report
JASE 2005-October -
Study on Reduction of Break Groan
JSAE Symposium 2006-December
